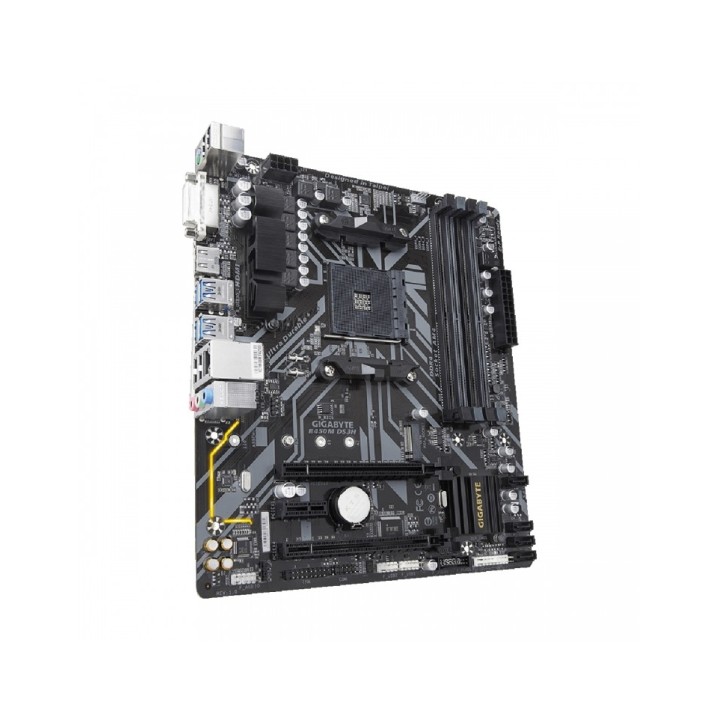

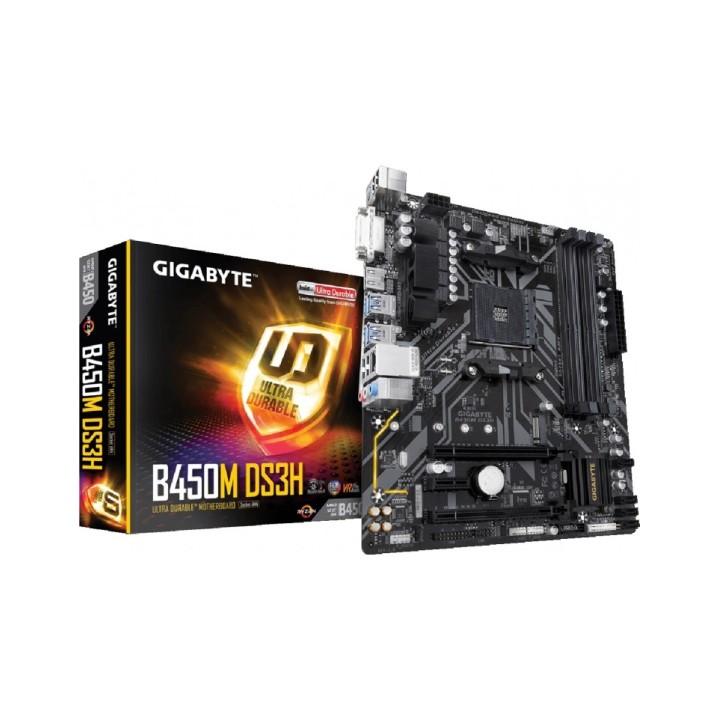

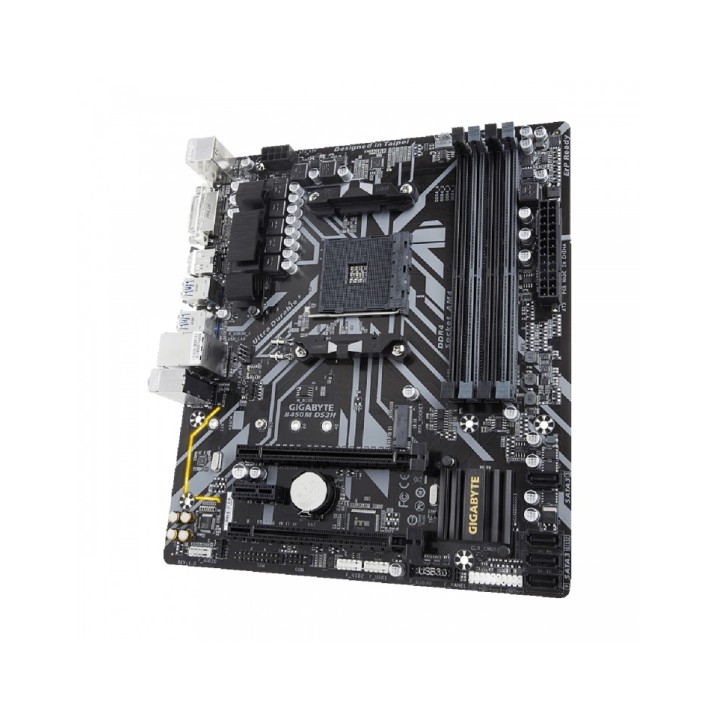

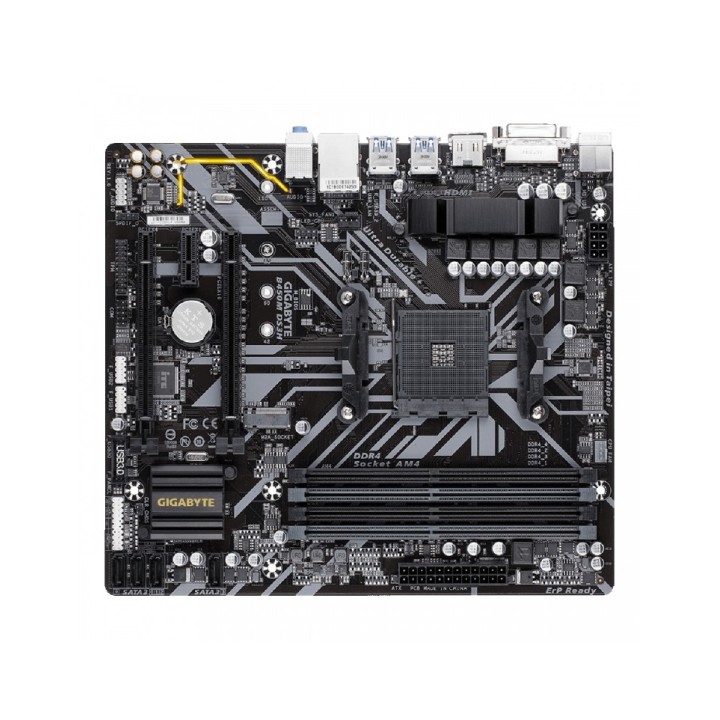

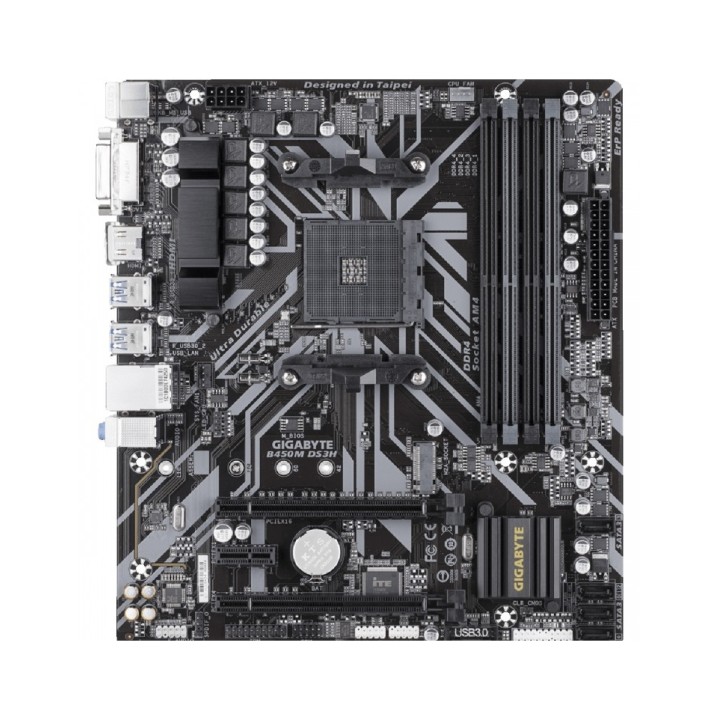

Gigabyte B450M-DS3H

Quantité

Socket
  1. AM4

Processeurs

  1. AMD Ryzen™ 2nd Generation processors
  2. AMD Ryzen™ with Radeon™ Vega Graphics processors
  3. AMD Ryzen™ 1st Generation processors
Chipset
  1. AMD B450
Mémoire
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Slots d´extension
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Graphique Integrated Graphics Processor:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
Contrôleurs
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10

Réseau

  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
Ports USB Chipset :
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU :
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Connecteurs E/S interne
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper

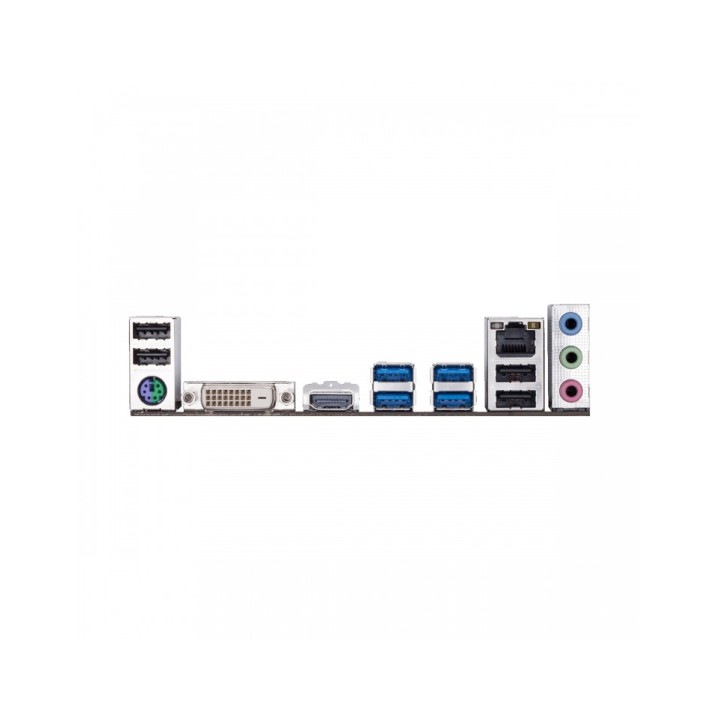

Connecteurs E/S arrière
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 4 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
Système d'exploitation
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
Dimensions
  1. Micro ATX (24.4 x 21.5 cm)
